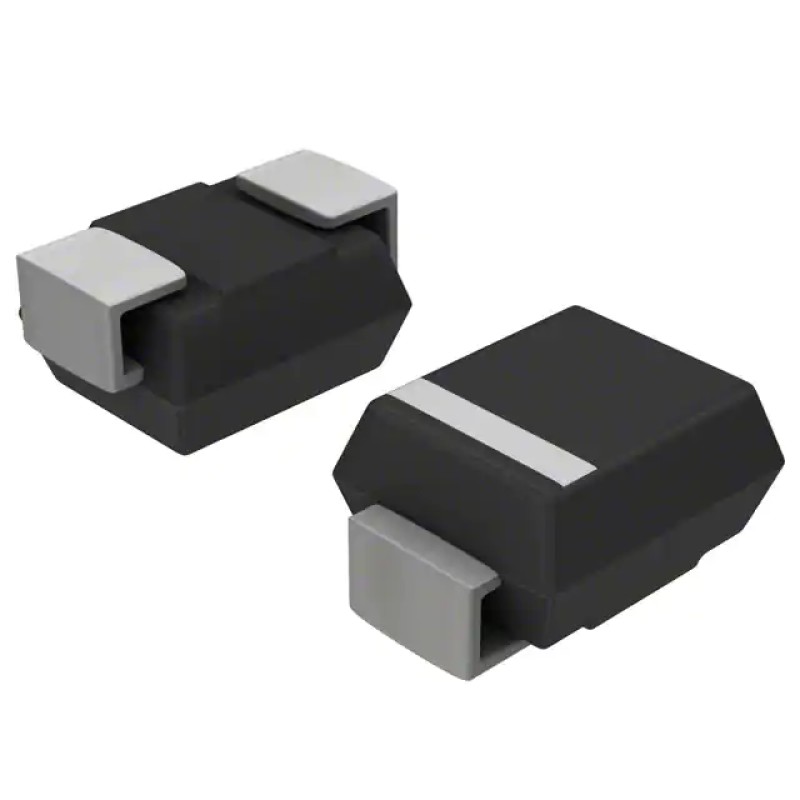

STPS2H100A Schottky Diode 100V 2A Surface Mount SMA Package

Revolutionizing Power Efficiency with STPS2H100A Schottky Diodes

In the ever-evolving landscape of electronic components, STMicroelectronics continues to push boundaries with its STPS2H100A Schottky Diode - a game-changing solution for modern power management applications. This surface-mount semiconductor device combines exceptional electrical characteristics with robust thermal performance, making it an indispensable component for engineers seeking optimal efficiency in compact designs.

Technical Excellence in Diode Design

Engineered for high-voltage applications, the STPS2H100A delivers a remarkable 100V DC reverse voltage rating while maintaining exceptional current handling capabilities of 2A average rectified current. Its advanced Schottky architecture achieves an impressively low forward voltage drop of just 790mV at 2A, significantly reducing conduction losses compared to conventional diodes. This revolutionary design approach translates to substantial energy savings and improved thermal management in power conversion circuits.

For quick reference, here's a summary of key technical specifications:

Performance-Driven Engineering

The STPS2H100A's fast recovery characteristics (<500ns) make it particularly suitable for high-frequency switching applications where efficiency matters most. Its minimal reverse leakage current of 1µA at maximum voltage ensures reliable operation in demanding environments while maintaining precise circuit behavior. The device's surface-mount SMA package enables automated assembly processes while providing excellent thermal dissipation through PCB connections.

This diode's exceptional junction temperature rating of 175°C allows for operation in extreme conditions without performance degradation, making it ideal for automotive electronics, industrial power supplies, and renewable energy systems where reliability is paramount.

Applications Across Industries

The versatility of the STPS2H100A shines through its broad application spectrum:

In power supply design, it serves as the ideal choice for secondary-side rectification in SMPS, improving efficiency while reducing heatsinking requirements. Automotive engineers utilize it in alternator rectification circuits and DC-DC converters, benefiting from its vibration-resistant surface-mount construction. Renewable energy systems employ these diodes in solar inverters and battery charging circuits to maximize energy harvest.

Consumer electronics manufacturers appreciate its compact footprint and low profile, enabling sleek device designs without compromising power handling capabilities. From LED lighting drivers to motor control circuits, this diode proves itself as a fundamental building block in modern electronics.

Manufacturing and Environmental Considerations

Produced in STM's state-of-the-art facilities, the STPS2H100A complies with the latest RoHS regulations and is available in tape-and-reel packaging (TR) for efficient automated assembly. The device's lead-free construction and halogen-free materials ensure environmental compliance without compromising electrical performance.

With a minimum order quantity of just one unit, designers can easily obtain samples for prototyping while benefiting from volume pricing at 440,000+ available units. The component's active status ensures long-term supply stability for production requirements.
