STMicroelectronics STPS1L30U Schottky Diode

STMicroelectronics STPS1L30U Schottky Diode: High-Efficiency Power Management Solution

Engineered for high-performance power systems, the STMicroelectronics STPS1L30U Schottky Diode represents a critical advancement in semiconductor technology. This surface-mount diode combines exceptional electrical characteristics with robust thermal management, making it ideal for modern power electronics applications where space constraints and energy efficiency are paramount. With its 30V reverse voltage rating and 1A average rectified current capacity, this component delivers reliable performance in demanding environments.

Technical Specifications of STPS1L30U

At its core, the STPS1L30U features advanced Schottky barrier technology that minimizes forward voltage drop to just 395mV at 1A current. This remarkable efficiency translates to reduced power losses and improved system thermal performance. The diode's fast recovery characteristics (<500ns) enable optimal operation in high-frequency switching circuits, while its 200µA reverse leakage current at maximum voltage ensures minimal standby power consumption.

Design and Packaging Excellence

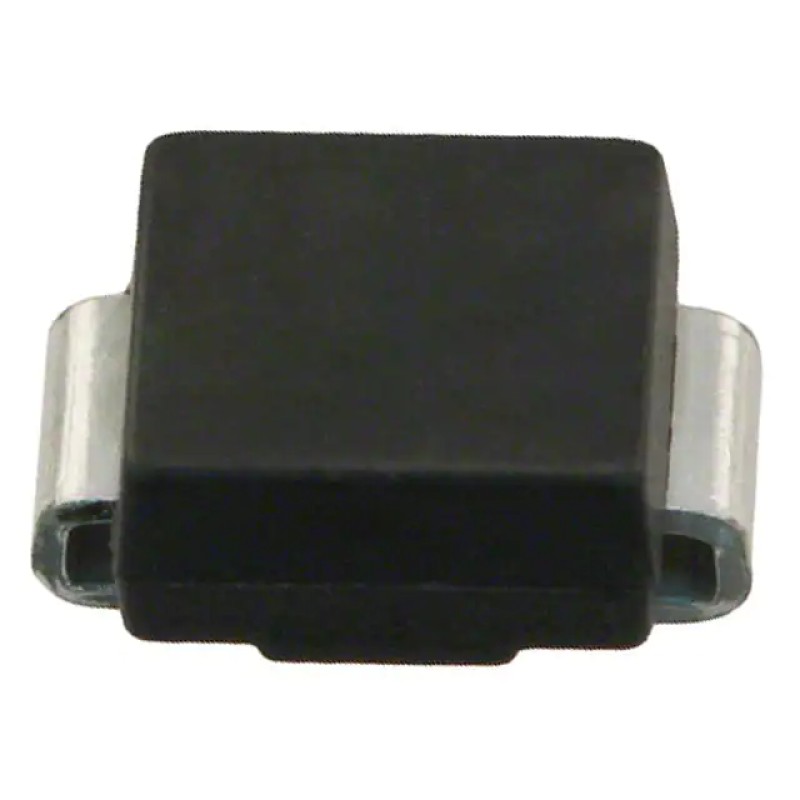

Housed in the industry-standard SMB (DO-214AA) package, this diode offers excellent mechanical durability and thermal dissipation. The surface-mount design facilitates automated assembly processes while maintaining exceptional reliability. The component's tape-and-reel packaging format ensures seamless integration with modern pick-and-place manufacturing equipment, supporting high-volume production requirements.

Key advantages include:

• Ultra-low forward voltage for enhanced efficiency
• High surge current capability for robustness
• Space-saving surface-mount design
• Compliance with automotive and industrial standards
• Superior thermal performance under load

Applications in Modern Electronics

The STPS1L30U finds application across diverse electronic systems including:

In power supplies, it enables efficient DC-DC conversion for computing and telecommunications infrastructure. Automotive electronics benefit from its stability in 12V/24V systems, particularly in engine control units and onboard charging systems. Industrial motor drives leverage its fast switching characteristics for improved energy efficiency. Additionally, its reliability makes it suitable for renewable energy systems like solar inverters and energy storage solutions.

Performance Characteristics

With a junction temperature rating of 150°C, this diode maintains stable operation in harsh thermal environments. The device's capacitance characteristics ensure minimal switching losses, while its low reverse leakage current preserves system efficiency during standby modes. The SMB package provides mechanical stability in vibration-prone applications, meeting automotive and industrial reliability standards.

Tags: Schottky Diode, 30V Diode, SMB Package, Power Electronics, Surface Mount Device
