STW88N65M5 MDmesh™ V Series N-Channel MOSFET
- Brand: STMicroelectronics
- Product Code: STW88N65M5
- Availability: In Stock
$6.00
- Ex Tax: $6.00
High-Performance Power Solution with STW88N65M5 MDmesh™ V Series MOSFET
Engineered for demanding power applications, the STW88N65M5 N-channel MOSFET from STMicroelectronics represents the pinnacle of MDmesh™ V Series technology. This advanced power transistor combines exceptional electrical performance with robust thermal management capabilities, making it ideal for industrial, automotive, and high-efficiency power systems. With its 650V rating and industry-leading RDS(on) characteristics, this device sets new standards for power density and energy efficiency.
Technical Excellence in Power Semiconductor Design
At the heart of the STW88N65M5's impressive performance lies STMicroelectronics' proprietary MDmesh™ V technology. This innovative design approach minimizes conduction losses while maintaining exceptional switching characteristics. The device's 29mΩ typical RDS(on) value at 42A and 10V gate drive ensures minimal power dissipation even under heavy load conditions. With a continuous drain current rating of 84A at 25°C, this MOSFET delivers reliable performance in high-current applications.
| Parameter | Value |
|---|---|
| Max Voltage | 650V |
| Max Current | 84A |
| RDS(on) Max | 29mΩ |
| Gate Charge | 204nC |
Optimized for Demanding Applications

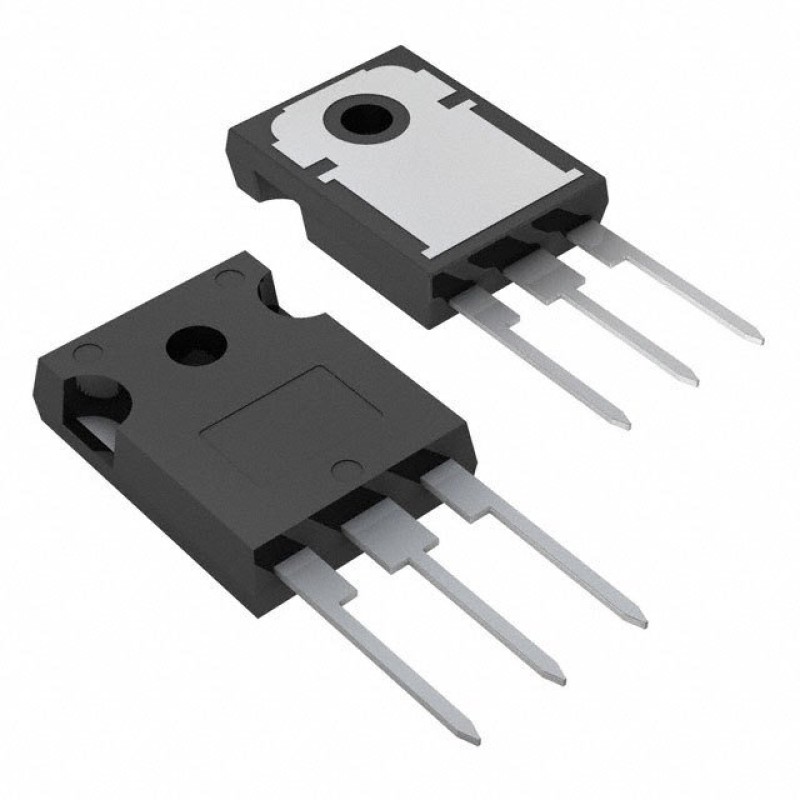

The STW88N65M5's through-hole TO-247-3 package provides excellent thermal dissipation characteristics, supporting its 450W power dissipation rating at case temperature. The ±25V gate voltage tolerance and 5V threshold voltage ensure compatibility with standard gate drive circuits while maintaining robust short-circuit protection. Its 8825pF input capacitance at 100V makes it particularly suitable for high-frequency switching applications in power supplies, motor controllers, and renewable energy systems.
Designed for industrial environments, the device maintains reliable operation up to 150°C junction temperature. The active product status indicates ongoing manufacturer support and supply stability for long-term design projects. As part of STMicroelectronics' MDmesh™ V Series portfolio, this MOSFET benefits from the company's extensive expertise in power semiconductor technology.
Comprehensive System Integration
The STW88N65M5's combination of high current capability, low on-resistance, and rugged design makes it particularly well-suited for:
- High-efficiency industrial power supplies
- Electric vehicle charging systems
- Renewable energy inverters
- Motor drive applications
- Welding equipment
When implementing this device in your design, consider pairing it with appropriate gate drive circuitry and thermal management solutions to maximize performance. The 204nC gate charge value indicates the importance of selecting a gate driver with sufficient current capability for optimal switching performance.
