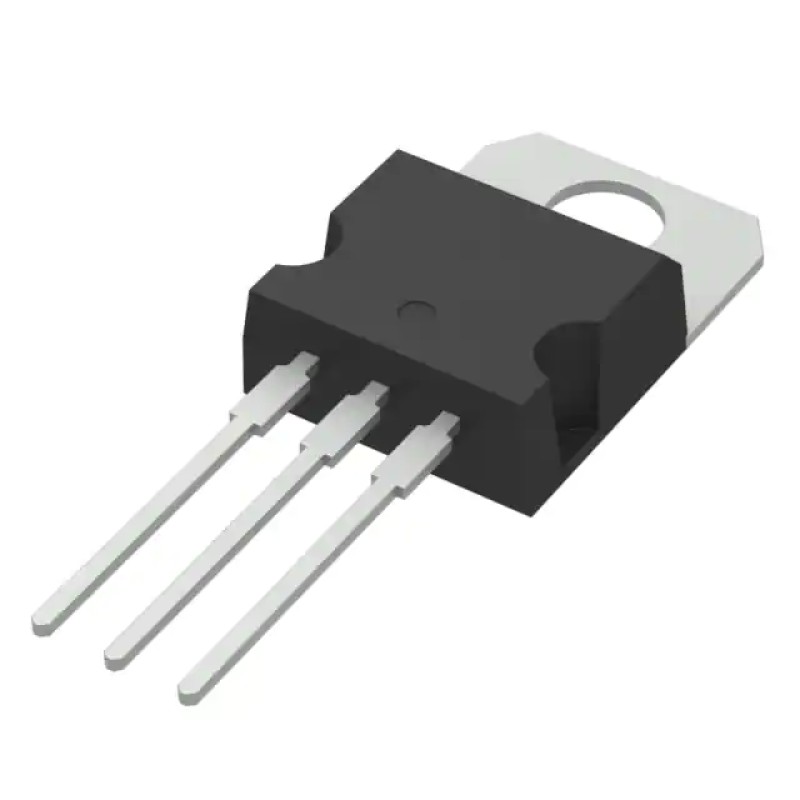

STMicroelectronics STP34NM60N N-Channel MOSFET
- Brand: STMicroelectronics
- Product Code: STP34NM60N
- Availability: In Stock
$2.10
- Ex Tax: $2.10
High-Performance STP34NM60N N-Channel MOSFET for Demanding Power Applications
STMicroelectronics continues to set industry standards with its STP34NM60N N-Channel MOSFET, a cutting-edge power transistor designed for high-voltage and high-current applications. This advanced component combines the company's proprietary MDmesh™ II technology with robust TO-220 packaging to deliver exceptional performance in power management systems, motor controllers, and industrial switching applications.
Advanced Technology for Maximum Efficiency
At the heart of the STP34NM60N lies STMicroelectronics' innovative MDmesh™ II technology, which achieves an unprecedented balance between on-state resistance (Rds(on)) and switching performance. With a maximum Rds(on) of just 105mΩ at 14.5A and 10V gate drive, this MOSFET minimizes conduction losses while maintaining fast switching capabilities. The device's 600V drain-source voltage rating and 29A continuous drain current capacity make it ideal for demanding applications requiring both high voltage and current handling.
| Parameter | Value |
|---|---|
| Drain-Source Voltage (Vdss) | 600V |
| Continuous Drain Current (Id) | 29A |
| Rds(on) Max | 105mΩ |
| Gate Charge (Qg) | 80nC |
| Package | TO-220-3 |
Optimized Thermal Performance
Engineered for high-power environments, the STP34NM60N features a maximum power dissipation of 250W at TC (case temperature). Its through-hole TO-220 package ensures excellent thermal management while maintaining compatibility with standard PCB mounting techniques. The device's ±25V gate voltage tolerance and 4V gate threshold voltage (at 250µA) provide reliable operation across a wide range of drive conditions.
With its 2722pF input capacitance at 100V and 80nC gate charge, this MOSFET strikes the perfect balance between switching speed and driver compatibility. The device's operating temperature rating of 150°C (TJ) ensures stable performance in challenging thermal environments, making it suitable for both industrial and automotive applications.
Reliable Power Switching Solution
The STP34NM60N's comprehensive feature set makes it an ideal choice for various power electronics applications including:
- Switching power supplies
- Motor drives and controls
- Industrial automation systems
- Renewable energy inverters
- Electric vehicle charging systems
Backed by STMicroelectronics' reputation for quality and reliability, this active product status component offers consistent performance in the most demanding environments. The device's tube packaging ensures safe handling and efficient inventory management for manufacturing operations.
Tags: Power MOSFET, N-Channel Transistor, TO-220 Package, Industrial Switching, Power Management
