STMicroelectronics STP10N95K5 SuperMESH5™ N-Channel MOSFET
- Brand: STMicroelectronics
- Product Code: STP10N95K5
- Availability: In Stock
$1.15
- Ex Tax: $1.15
High-Performance STP10N95K5 N-Channel MOSFET for Demanding Power Applications

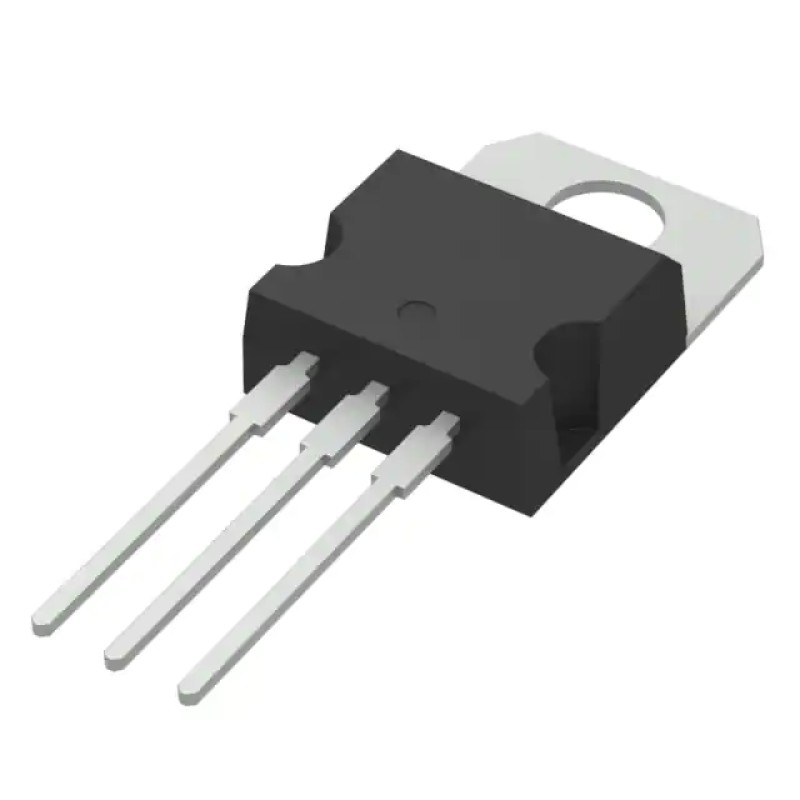

Engineered for reliability and efficiency in high-voltage environments, the STMicroelectronics STP10N95K5 SuperMESH5™ N-Channel MOSFET represents the cutting edge of power semiconductor technology. This TO-220 packaged device combines exceptional electrical characteristics with robust thermal performance, making it ideal for industrial power systems, motor control circuits, and high-voltage switching applications.
Technical Excellence in Power Management
Designed with STMicroelectronics' advanced SuperMESH5 technology, this MOSFET delivers groundbreaking performance metrics that set new standards in power electronics. Its 950V drain-source voltage rating enables operation in the most demanding high-voltage scenarios, while maintaining an impressively low on-resistance of just 800mΩ at 4A current and 10V gate drive. This unique combination of high breakdown voltage and minimal conduction losses results in superior energy efficiency and reduced thermal stress in power conversion systems.
| Parameter | Value |
|---|---|
| Max Voltage (Vdss) | 950 V |
| Continuous Drain Current | 8A @ 25°C |
| On-Resistance (Rds(on)) | 800mΩ @ 4A, 10V |
| Gate Charge (Qg) | 22 nC @ 10V |
| Operating Temperature | -55°C to 150°C |
Advanced Features for Reliable Operation
The STP10N95K5 incorporates multiple design innovations that enhance its performance across various applications. With a ±30V gate voltage tolerance and 5V gate threshold voltage, this device offers excellent control characteristics while maintaining exceptional ruggedness. Its 630pF input capacitance ensures fast switching transitions with minimal drive requirements, making it well-suited for high-frequency power converters. The through-hole TO-220 packaging provides excellent thermal dissipation capabilities, supporting the device's 130W maximum power dissipation rating.
Engineers will appreciate the device's inherent stability in challenging environments, with guaranteed performance across the full industrial temperature range. The MOSFET's design minimizes switching losses through optimized charge characteristics, while maintaining excellent avalanche energy ratings for enhanced reliability in inductive load applications.
Comprehensive Power Electronics Solution
The STP10N95K5's specifications make it particularly suitable for various power electronics applications, including but not limited to:
• Switching power supplies and DC-DC converters
• Motor drive circuits and variable frequency drives
• Industrial automation equipment
• High-voltage LED lighting systems
• Uninterruptible power supplies (UPS)
When designing with this device, engineers benefit from simplified thermal management requirements due to its high power dissipation capability and low on-resistance. The TO-220 package allows for easy integration into traditional PCB layouts while maintaining excellent mechanical stability.
Tags: Power Electronics, High-Voltage MOSFET, Industrial Components, Semiconductor Devices, TO-220 Transistor
