STMicroelectronics STN1HNK60 SuperMESH™ N-Channel MOSFET

High-Performance STN1HNK60 N-Channel MOSFET for Power Electronics Applications

STMicroelectronics continues to set industry standards with its SuperMESH™ family of power MOSFETs, and the STN1HNK60 model exemplifies this innovation. Designed for high-voltage applications requiring superior efficiency and reliability, this N-channel MOSFET combines advanced semiconductor technology with optimized thermal management. With its 600V breakdown voltage and 400mA continuous drain current capability, the STN1HNK60 delivers exceptional performance in compact SOT-223 packages, making it ideal for power supplies, motor control systems, and industrial automation equipment.

Key Technical Specifications

At the core of this device's impressive performance is its 600V Vdss rating, which enables operation in high-voltage environments while maintaining stability under varying load conditions. The MOSFET's Rds(on) specification of 8.5Ω (max) at 500mA and 10V gate-source voltage ensures minimal conduction losses, translating to improved energy efficiency and reduced thermal stress in power circuits.

The device's ±30V gate-source voltage rating provides enhanced robustness against voltage transients, while its 156pF input capacitance at 25V Vds optimizes switching performance in high-frequency applications. The integrated SuperMESH™ technology combines optimized cell structure with advanced processing techniques to minimize on-resistance while maintaining excellent switching characteristics.

Thermal and Mechanical Design

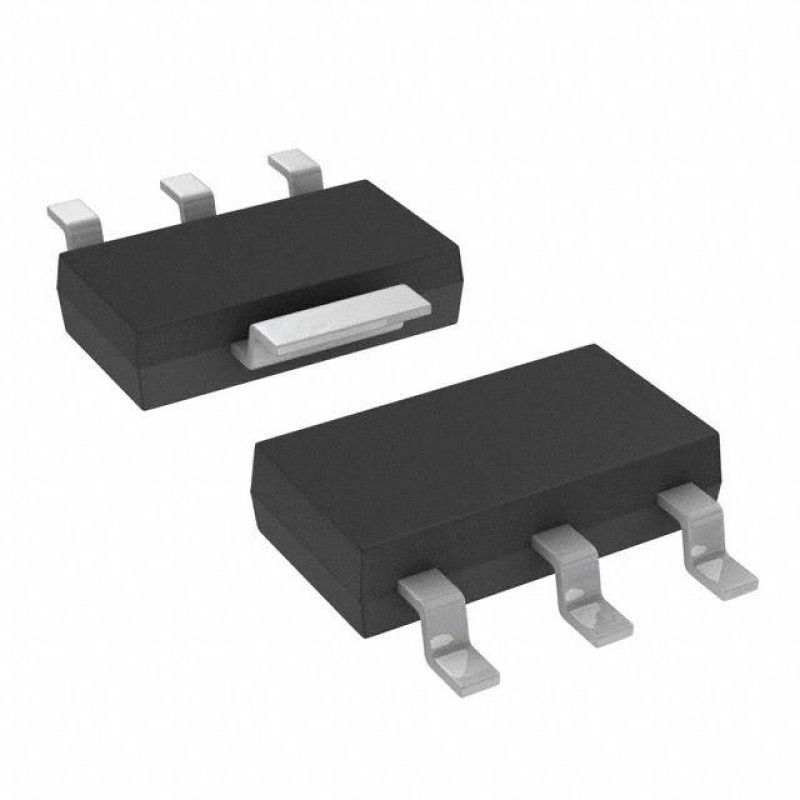

Housed in the space-efficient SOT-223 package (TO-261-4), this MOSFET features a surface-mount design that simplifies PCB integration while maintaining excellent thermal dissipation capabilities. The package's 3.3W (Tc) power dissipation rating ensures reliable operation even under continuous load conditions, with operating temperatures spanning from -55°C to 150°C junction temperature.

Engineers will appreciate the device's 3.7V Vgs(th) specification, which enables efficient gate drive at standard logic levels while maintaining sufficient noise margin. The 10nC gate charge characteristic further enhances switching efficiency, reducing power losses in high-frequency converter circuits.

Application Versatility

The STN1HNK60's combination of high-voltage capability and compact packaging makes it particularly well-suited for modern power electronics applications. Its performance characteristics excel in:

• Switch-mode power supplies (SMPS)
• Motor drive inverters
• Industrial automation systems
• Lighting ballasts
• Home appliance power controls

When integrated into power conversion designs, this MOSFET helps achieve higher energy efficiency ratings while maintaining reliable operation in demanding environments. The device's RoHS compliance and Pb-free construction further support modern electronics' environmental requirements.

Design Considerations

For optimal performance, designers should consider the following implementation guidelines:

• Implement proper gate drive circuitry to maintain switching efficiency
• Ensure adequate PCB copper area for thermal management
• Use snubber networks where inductive load switching occurs
• Maintain gate-source voltage within specified ±30V limits

When compared to similar devices in its class, the STN1HNK60 demonstrates superior performance in both conduction and switching losses metrics. Its 8.5Ω Rds(on) specification outperforms typical industry standards while maintaining excellent gate charge characteristics.
