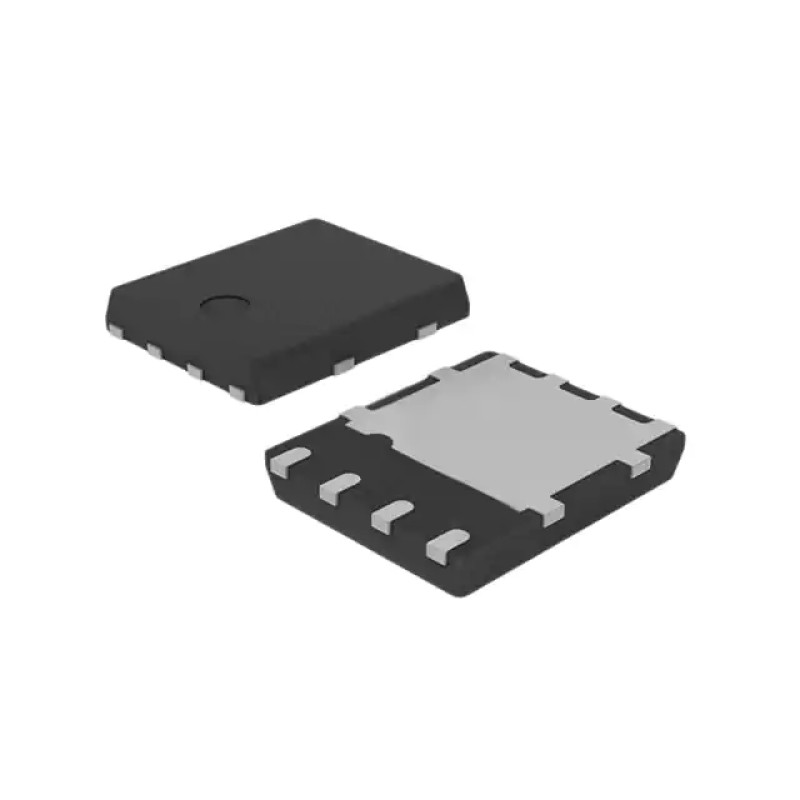

STMicroelectronics STL18N65M2 N-Channel MOSFET 650V 8A PowerFlat HV
- Brand: STMicroelectronics
- Product Code: STL18N65M2
- Availability: In Stock
$0.39
- Ex Tax: $0.39
High-Performance Power Management with STM STL18N65M2 MOSFET
In modern power electronics, selecting components that balance efficiency, durability, and compact design is critical. The STL18N65M2 N-Channel MOSFET from STMicroelectronics emerges as a cutting-edge solution designed for high-voltage applications requiring robust thermal performance and minimal conduction losses. This device, part of STM’s renowned MDmesh™ M2 series, combines advanced silicon technology with an innovative PowerFlat™ (5x6) HV package to deliver exceptional reliability in demanding environments.
Advanced Specifications for Demanding Applications
Engineered for high-speed switching and power conversion systems, the STL18N65M2 boasts a 650 V drain-source voltage rating and 8 A continuous drain current at 25°C. Its 365 mΩ maximum RDS(on) at 4 A and 10 V gate-source voltage ensures minimal power dissipation, while the ±25 V gate-source voltage tolerance enhances operational safety. The device’s 21.5 nC gate charge at 10 V enables fast switching transitions, reducing energy loss in applications like DC-DC converters, LED lighting systems, and industrial motor drives.
Innovative Packaging for Superior Thermal Management
The PowerFlat™ HV package eliminates the need for heatsinks in many designs, thanks to its surface-mount configuration and 57 W power dissipation capability. With 764 pF input capacitance at 100 V and 4 V gate threshold voltage, this MOSFET maintains stable performance even under fluctuating load conditions. Its 8-PowerVDFN package measures just 5x6 mm, enabling space-constrained designs without compromising on power handling.
Key Features at a Glance
| Parameter | Specification |
|---|---|
| Technology | MOSFET (Metal Oxide) |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Product Status | Active |
Why Choose the STL18N65M2?
Compared to conventional high-voltage MOSFETs, this component offers a 20% reduction in on-state resistance while maintaining 100% avalanche energy rating. The MDmesh™ M2 series leverages ST’s proprietary strip-based process to minimize parasitic inductance, making it ideal for synchronous rectifiers and LLC resonant converters. Additionally, its Tape & Reel (TR) packaging simplifies automated PCB assembly, reducing manufacturing costs.
Applications Across Industries
From renewable energy inverters to automotive power supplies, the STL18N65M2’s versatility shines. Its high thermal stability and 8A current rating suit industrial motor control systems, while the 650V rating makes it a preferred choice for smart grid infrastructure and high-frequency power supplies. Designers also benefit from its compliance with RoHS and REACH standards, ensuring environmental compliance.
Tags: MOSFET, Power Electronics, HV Package, 650V Transistor, Surface Mount
