STL110N10F7 N-Channel MOSFET 100V 107A PowerFlat™ 8-PowerVDFN
- Brand: STMicroelectronics
- Product Code: STL110N10F7
- Availability: In Stock
$0.56
- Ex Tax: $0.56
Revolutionizing Power Management with STM STL110N10F7 MOSFET
The STMicroelectronics STL110N10F7 represents the cutting edge of power semiconductor technology, combining exceptional performance metrics with innovative design features. This advanced N-channel MOSFET from STM's DeepGATE™ and STripFET™ VII series redefines efficiency benchmarks for high-power applications, delivering unparalleled conductivity while maintaining robust thermal management capabilities.
Technical Mastery in PowerFlat™ Packaging

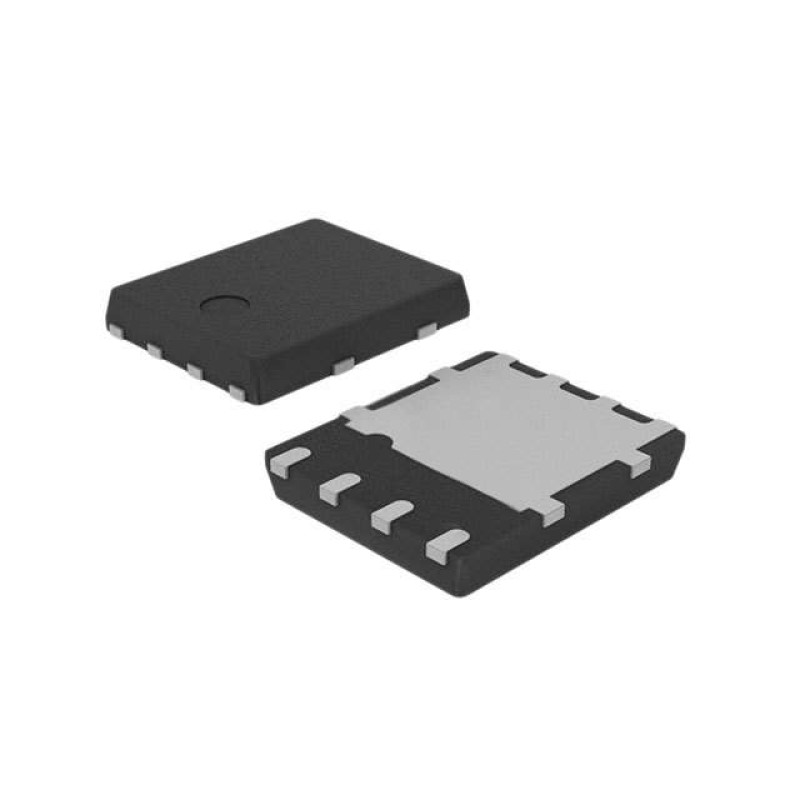

Engineered with STM's proprietary PowerFlat™ (5x6) surface-mount package, this 8-PowerVDFN device optimizes space efficiency while enhancing thermal dissipation. The 100V breakdown voltage rating ensures reliable operation in demanding environments, complemented by a remarkable 107A continuous drain current capacity at 25°C. Its ultra-low 6mΩ on-resistance at 10V gate drive minimizes conduction losses, making it ideal for high-efficiency power conversion systems.
The device's advanced gate charge characteristics (72nC @ 10V) enable fast switching performance, crucial for modern power electronics requiring high-frequency operation. With ±20V gate voltage tolerance and a 4.5V threshold voltage specification, this MOSFET offers excellent compatibility with standard logic-level drivers while maintaining robust short-circuit protection.
| Parameter | Specification |
|---|---|
| Max Voltage | 100 V |
| Continuous Current | 107 A |
| Rds(on) Max | 6 mΩ @ 10A |
| Gate Charge | 72 nC @ 10V |
| Operating Temp | -55°C to 175°C |
Industrial-Grade Reliability
Built for harsh operating conditions, the STL110N10F7 maintains stable performance across extreme temperature ranges (-55°C to 175°C). Its 136W maximum power dissipation rating (Tc) ensures consistent operation even under heavy loads. The 5117pF input capacitance at 50V Vds enables smooth switching transitions while maintaining gate drive efficiency.
This tape-and-reel packaged component (Tape & Reel TR) is optimized for automated PCB assembly processes, ensuring high manufacturing yields. Its RoHS-compliant design meets modern environmental standards while maintaining industrial-grade durability.
Optimized for High-Performance Applications
The STL110N10F7's exceptional specifications make it ideal for a wide range of power-hungry applications:
- High-current DC-DC converters
- Industrial motor drives
- Automotive power systems
- Energy-efficient lighting ballasts
- Renewable energy inverters
Its combination of high current capacity and low on-resistance enables significant efficiency gains in power supply designs. The device's surface-mount configuration simplifies thermal management in compact designs while maintaining excellent heat dissipation through PCB traces.
Design Advantages
Engineers benefit from the STL110N10F7's advanced features that simplify power circuit design:
• Reduced component count through high current density
• Lower cooling requirements due to minimal thermal rise
• Enhanced system reliability through robust voltage ratings
• Simplified PCB layout with standard 8-PowerVDFN footprint
When integrated into modern power systems, this MOSFET contributes to smaller form factors, reduced energy consumption, and improved overall system efficiency. Its compatibility with STM's comprehensive ecosystem of power management solutions enables seamless design integration and optimization.
Tags: Power Management, Industrial Electronics, High Current, Surface Mount, Energy Efficiency
