STL10N65M2 N-Channel MOSFET 650V 4.5A PowerFlat™

Revolutionizing Power Electronics: STL10N65M2 N-Channel MOSFET

In the ever-evolving landscape of power electronics, the STL10N65M2 N-Channel MOSFET emerges as a game-changer for engineers seeking reliable high-voltage solutions. This advanced semiconductor device from STMicroelectronics combines cutting-edge technology with robust performance metrics, making it an ideal choice for demanding applications requiring efficient power management.

Unparalleled Performance Specifications

Engineered for excellence, the STL10N65M2 delivers exceptional electrical characteristics that set new industry benchmarks. With its 650V drain-source voltage rating and 4.5A continuous drain current capacity, this MOSFET excels in high-voltage environments while maintaining optimal thermal stability. The device's 1Ω maximum RDS(on) at 2.5A and 10V gate-source voltage ensures minimal conduction losses, translating to improved energy efficiency and reduced operating temperatures.

The advanced gate charge management system, featuring a 10.3nC maximum Qg at 10V, enables fast switching performance while maintaining control over dv/dt rates. This crucial characteristic makes it particularly valuable for applications requiring precise power regulation, such as motor drives, power supplies, and industrial automation systems.

Innovative Packaging for Modern Applications

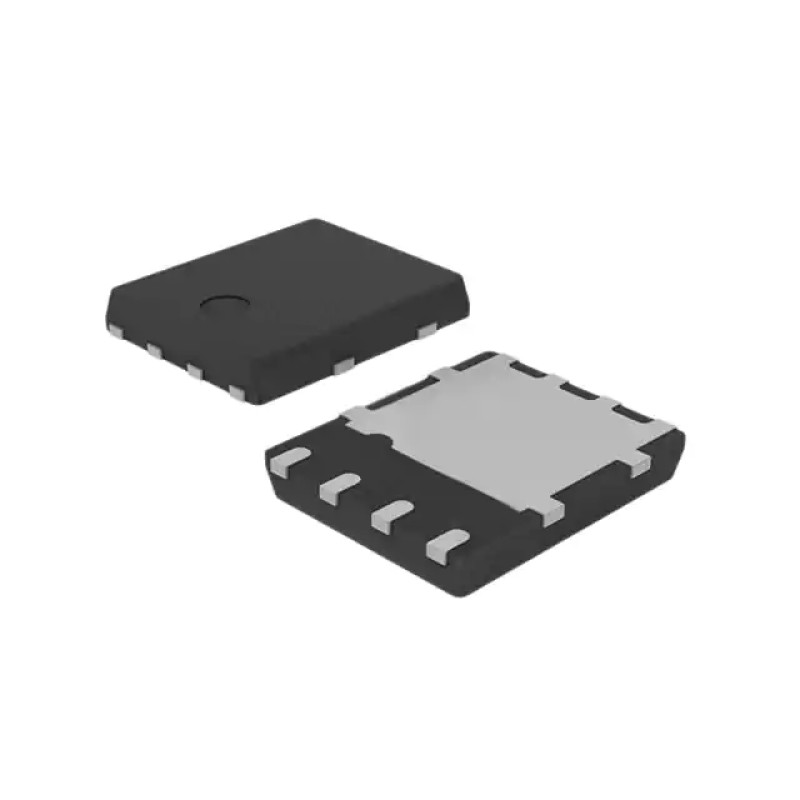

Housed in STMicroelectronics' proprietary PowerFlat™ (5x6) HV package, this surface-mount device offers a perfect balance between compact form factor and thermal performance. The 8-PowerVDFN package design facilitates efficient heat dissipation while maintaining compatibility with automated PCB assembly processes. This packaging innovation enables designers to create space-efficient solutions without compromising on power handling capabilities.

Technical Excellence in Critical Parameters

The device's ±25V gate-source voltage rating provides enhanced protection against transient voltage spikes, while its 315pF input capacitance at 100V ensures stable operation in high-frequency switching applications. The 4V maximum gate threshold voltage at 250µA allows for precise control over turn-on characteristics, making it compatible with standard logic-level drivers.

Reliability and Versatility

Designed for mission-critical applications, the STL10N65M2 maintains full functionality across extreme temperature ranges (-55°C to 150°C). This exceptional thermal resilience, combined with 48W maximum power dissipation capability, makes it suitable for challenging environments including industrial motor controls, renewable energy systems, and automotive powertrain applications.

As part of STMicroelectronics' Active product status lineup, this MOSFET benefits from the manufacturer's comprehensive technical support and long-term supply assurance. The device's tape & reel packaging format facilitates seamless integration with high-volume production requirements, while its RoHS-compliant construction meets modern environmental regulations.

Design Optimization and Support

Engineers working with the STL10N65M2 have access to STMicroelectronics' extensive design ecosystem, including SPICE models, thermal simulation tools, and application-specific design guides. These resources enable optimal implementation across diverse applications such as:

• Switch-mode power supplies
• Motor control inverters
• Solar inverters
• Industrial automation systems
• Electric vehicle charging infrastructure

With its combination of high-voltage capability, efficient power delivery, and advanced packaging technology, the STL10N65M2 represents a significant advancement in power MOSFET design. This device empowers engineers to develop more compact, efficient, and reliable power systems while maintaining strict compliance with industry standards and environmental regulations.
