STMicroelectronics BTB41-600BRG TRIAC

STMicroelectronics BTB41-600BRG TRIAC: High-Performance Semiconductor Solution

In the ever-evolving landscape of industrial electronics, the STMicroelectronics BTB41-600BRG TRIAC emerges as a critical component for engineers seeking reliable power control solutions. This semiconductor device bridges the gap between demanding electrical requirements and efficient system design, offering a perfect blend of robust performance characteristics and versatile application capabilities.

Technical Excellence in Power Management

Engineered with precision, this TRIAC delivers exceptional specifications that cater to modern power electronics needs. Operating at 600V with a maximum RMS current capacity of 40A, it provides exceptional handling for high-power applications. The device's low gate trigger voltage (Vgt) of just 1.3V ensures efficient switching operations, while its 50mA gate trigger current (Igt) specification allows for compatibility with various control circuits.

What truly sets this component apart is its impressive non-repetitive surge current capability, reaching up to 400A/420A at standard frequencies. This characteristic proves invaluable in protecting connected systems from unexpected power spikes while maintaining operational continuity. The device's 80mA holding current (Ih) specification ensures reliable operation across diverse thermal conditions, maintaining stability even in challenging environments.

Reliable Performance Across Applications

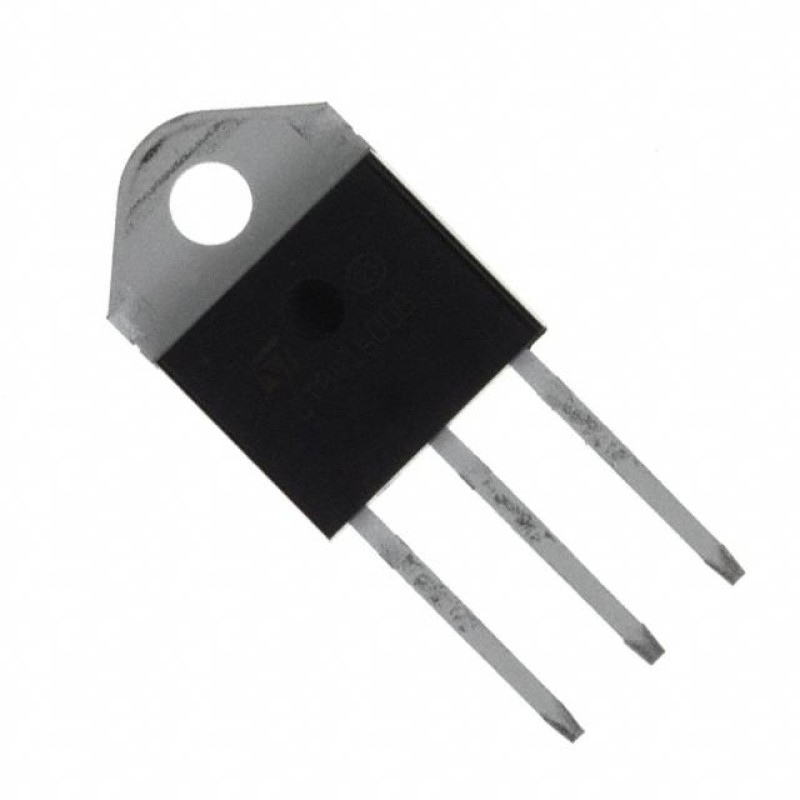

The BTB41-600BRG's TOP-3 through-hole package combines mechanical durability with excellent thermal dissipation properties. This packaging solution enables seamless integration into various PCB designs while maintaining exceptional heat management capabilities. The device's wide operating temperature range (-40°C to 125°C) makes it suitable for deployment in both industrial and consumer-grade equipment, from HVAC systems to advanced motor control units.

Engineers appreciate the device's single configuration design, which simplifies circuit design while maintaining high reliability. Its active product status ensures ongoing support and availability, making it an ideal choice for both new designs and system upgrades. The TRIAC's standard type classification guarantees compatibility with established design practices while offering room for innovation.

Industrial Applications and System Integration

This versatile component finds application across multiple industries, powering everything from industrial machinery to home appliances. Its robust construction enables reliable performance in motor speed control, lighting dimming systems, and electrical appliance regulation. The device's exceptional surge handling capabilities make it particularly valuable in environments prone to electrical transients.

When integrating into new designs, the TRIAC's tube packaging facilitates automated assembly processes while maintaining component protection during storage and handling. Designers benefit from its straightforward implementation in AC power control circuits, where its precise switching characteristics contribute to improved system efficiency and reduced power loss.

Future-Proof Design and Sustainability

STMicroelectronics' commitment to quality is evident in this component's construction. The BTB41-600BRG TRIAC represents a perfect balance between proven semiconductor technology and forward-thinking design principles. Its enduring relevance in modern electronics stems from its ability to meet current power control demands while maintaining compatibility with emerging design methodologies.

The device's thermal stability and electrical characteristics ensure long-term reliability in demanding applications, reducing maintenance requirements and extending system lifespan. This longevity contributes to both economic and environmental sustainability, aligning with modern engineering priorities for durable and efficient electronic solutions.
