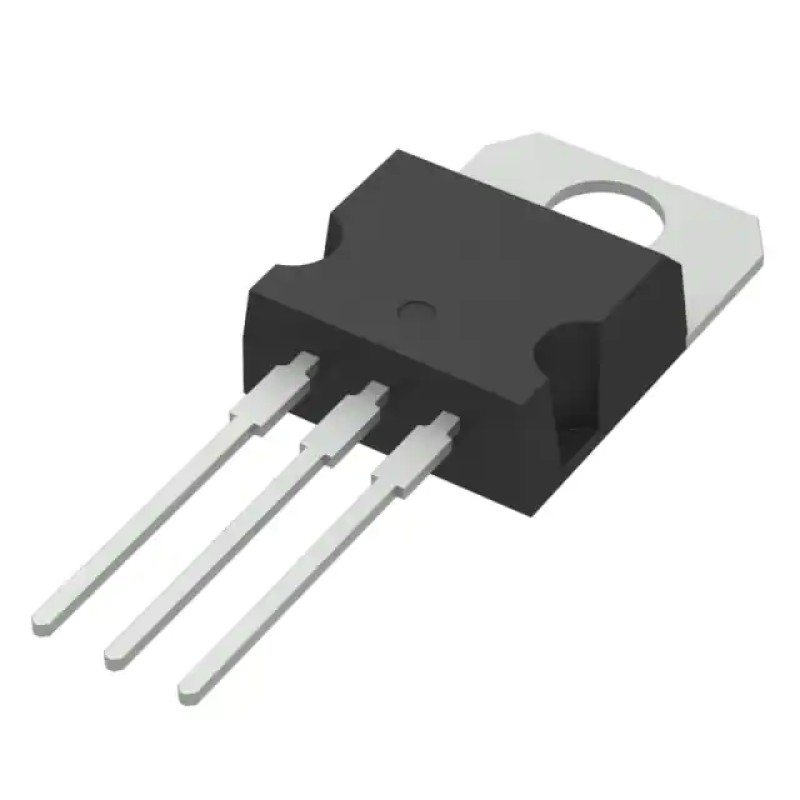

STMicroelectronics BTB24-800BWRG Snubberless TRIAC
- Brand: STMicroelectronics
- Product Code: BTB24-800BWRG
- Availability: In Stock
$0.70
- Ex Tax: $0.70
Revolutionizing Power Control: STMicroelectronics BTB24-800BWRG Snubberless TRIAC
Engineered for high-performance applications requiring robust power management, the STMicroelectronics BTB24-800BWRG Snubberless TRIAC represents a leap forward in semiconductor technology. This advanced device combines exceptional electrical characteristics with innovative design, offering engineers and manufacturers a reliable solution for demanding environments. Designed specifically for AC power control systems, this TRIAC eliminates the need for external snubber circuits, simplifying design complexity while maintaining superior performance across industrial, commercial, and consumer applications.
Technical Specifications and Performance Capabilities
The BTB24-800BWRG delivers impressive electrical specifications that set new standards in power electronics. With its 800V off-state voltage capability, this device surpasses conventional TRIACs, making it ideal for applications requiring enhanced voltage tolerance. The maximum RMS on-state current of 25A ensures stable operation under heavy load conditions, while the exceptionally low gate trigger voltage (1.3V max) enables efficient control circuit integration.
| Parameter | Value |
|---|---|
| Off-State Voltage | 800 V |
| RMS On-State Current | 25 A |
| Gate Trigger Voltage | 1.3 V (Max) |
| Non-Repetitive Surge Current | 250A/260A (50/60Hz) |
| Operating Temperature | -40°C to 125°C |
These specifications make the device particularly well-suited for applications experiencing voltage spikes or operating in harsh environmental conditions. The through-hole TO-220AB packaging ensures excellent thermal dissipation while maintaining mechanical stability, crucial for long-term reliability in continuous operation scenarios.
Applications and Use Cases
This versatile TRIAC finds application across a diverse range of industries and systems. In industrial automation, it serves as a critical component in motor speed controllers, heating systems, and industrial lighting management. Consumer electronics benefit from its capabilities in smart home appliances, variable speed power tools, and energy-efficient lighting solutions. The device's robust construction and wide operating temperature range make it equally effective in demanding automotive environments and outdoor equipment.
Key applications include:
- Industrial motor control systems
- High-power switching circuits
- Smart energy management systems
- Commercial HVAC systems
- Heavy-duty appliance controls
Why Choose STMicroelectronics BTB24-800BWRG
STMicroelectronics' proprietary Snubberless technology represents a significant advancement in TRIAC design. This innovation eliminates the need for traditional RC snubber circuits typically required to protect against voltage spikes. The result is reduced component count, lower board space requirements, and decreased manufacturing costs while maintaining exceptional performance characteristics.
The device's through-hole TO-220AB packaging provides excellent mechanical stability and thermal management, crucial for applications demanding long-term reliability. With its guaranteed gate commutated thyristor (GCT) characteristics and integrated protection features, this TRIAC offers superior performance in inductive load applications where traditional devices might struggle with commutation issues.
Backed by STMicroelectronics' reputation for quality and innovation, the BTB24-800BWRG delivers exceptional reliability across its entire operating range. The device's comprehensive protection features include built-in thermal shutdown capabilities and robust short-circuit protection, ensuring trouble-free operation even in challenging environments.
Tags: Power Electronics, Industrial Automation, Voltage Control, Semiconductor Devices, Electrical Components
