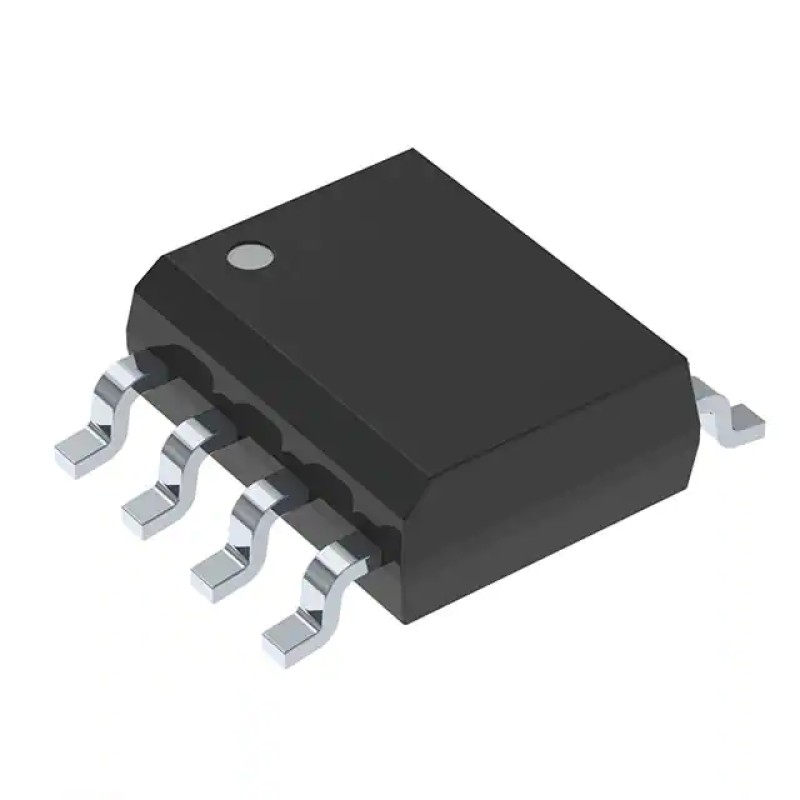

ADI ADUM1201BRZ-RL7 Digital Isolator - SOIC Packaging
- Product Code: ADUM1201BRZ-RL7
- Availability: In Stock
$1.40
- Ex Tax: $1.40
Revolutionizing Digital Isolation: The ADUM1201BRZ-RL7 is a high-performance digital isolator IC designed to provide robust signal isolation in modern industrial, medical, and communication systems. This compact SOIC-packaged device combines advanced iCoupler® technology with low-power operation to deliver reliable galvanic isolation for digital signals up to 2.5 kV RMS.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Isolation Voltage | 2.5 kV RMS (1 minute) |
| Data Rate | Up to 100 Mbps |
| Supply Voltage | 1.7 V to 5.5 V |
| Propagation Delay | 2 ns (typical) |
| Power Consumption | 0.8 mA (per channel, 3.3V supply) |
| Temperature Range | -40°C to +125°C |
| Package | SOIC-8 (4.9mm × 3.9mm × 1.75mm) |
| Channel Configuration | Dual-channel (2 bidirectional channels) |
Advanced Design Features
iCoupler® Magnetic Isolation Technology:
- Eliminates the need for optocouplers while providing superior performance and reliability
- Magnetic coupling ensures no wear-out mechanisms, unlike optical solutions
Low Power Consumption:
- Industry-leading power efficiency (0.8 mA per channel) for battery-powered and energy-sensitive applications
- Power-down mode reduces current consumption to negligible levels
High-Speed Operation:
- Supports data rates up to 100 Mbps, ideal for high-speed digital interfaces
- Consistent performance across temperature and voltage variations
Compact SOIC Packaging:
- Space-saving 8-pin SOIC package with industry-standard footprint
- Enhanced thermal performance for reliable operation in compact designs
Industrial Applications
Industrial Automation:
- Isolated RS-485/RS-232 interfaces
- Digital I/O isolation in PLC systems
- Motor control signal isolation
Medical Electronics:
- Patient monitoring system isolation
- Medical device interface protection
- Diagnostic equipment signal isolation
Telecommunication Infrastructure:
- High-speed data line isolation
- Base station signal isolation
- Network equipment protection
Power Systems:
- Isolated gate drive for power devices
- Power supply feedback isolation
- Battery management system isolation
Performance Advantages
Superior Isolation Performance:
- 2.5 kV RMS isolation rating for robust protection
- Compliance with IEC 60747-5-5 and VDE 0884-10 standards
High Reliability:
- MTBF > 10^9 hours for long-term reliability
- No derating required across full temperature range
Signal Integrity:
- Low propagation delay (2 ns typical) for high-speed applications
- Minimal pulse width distortion for precise timing
Design Considerations
PCB Layout Best Practices:
- Maintain minimum 4mm creepage/clearance distances
- Use ground planes on both sides of the isolation barrier
- Minimize trace lengths for high-speed signals
- Avoid running sensitive analog traces near isolation barrier
Power Supply Considerations:
- Use bypass capacitors (0.1 µF ceramic) near each VCC pin
- Ensure clean power supply with low noise characteristics
- Consider power supply sequencing for multi-supply systems
Thermal Management:
- Ensure adequate PCB copper pour for heat dissipation
- Consider package thermal resistance (θJA = 125°C/W) in power calculations
Future-Proof Engineering
Long-Term Availability:
- Backed by Analog Devices' robust product lifecycle management
- Available through distribution channels with long-term supply commitment
System Scalability:
- Pin-compatible with other iCoupler® digital isolators
- Supports daisy-chain configurations for multi-channel isolation
Compliance & Certifications:
- UL 1577 recognition for safety-critical applications
- VDE 0884-10 certification for reinforced isolation
- CQC certification for Chinese market compliance
Tags: Digital Isolation, Industrial Electronics, Medical Devices, Communication Systems, Power Isolation, Signal Integrity
